Portable Remote Racking Assembly for Magne-Blast Circuit Breaker

Portable remote racking assembly for Magne-Blast breaker/switchgear to allow operators to stand clear of arc-flash hazards

0.00 $ 0.0 CAD 0.00 $

0.00 $

    This combination does not exist.

    Touch screen operator interface

    • Breaker movement is controlled by a touch screen graphical interface.
    • The controls prompt the operator through a sequence of steps and checks to perform the racking process safely.
    • The control interface is mounted safely outside the arc flash boundary.
    • Real time information such as the breaker tilt/level measurements and breaker lifting resistance are displayed in real time.
    • Alarms and faults are displayed immediately.



    Live Video Monitoring

    • Using a low light Infra-red camera, the operator is able to view the breaker position and movement on a live flat screen video monitor while the breaker door is closed.
    • Two different options are available for remote controls and video monitoring

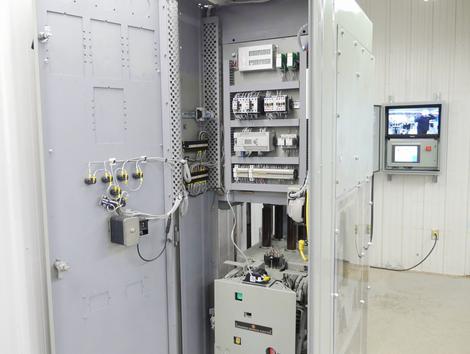

      • A large video monitor above the touch screen controls in a permanently wall mounted cabinet - shown below

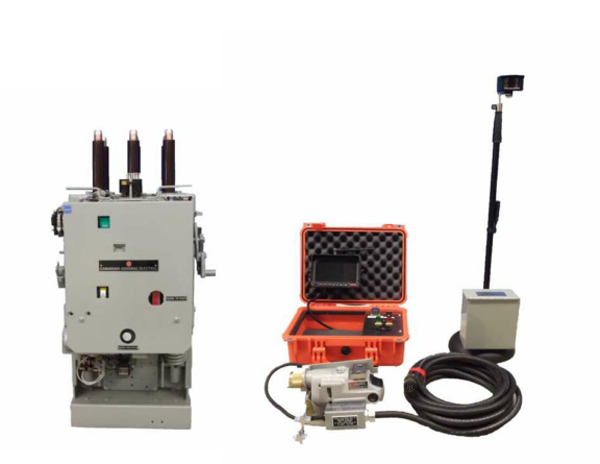

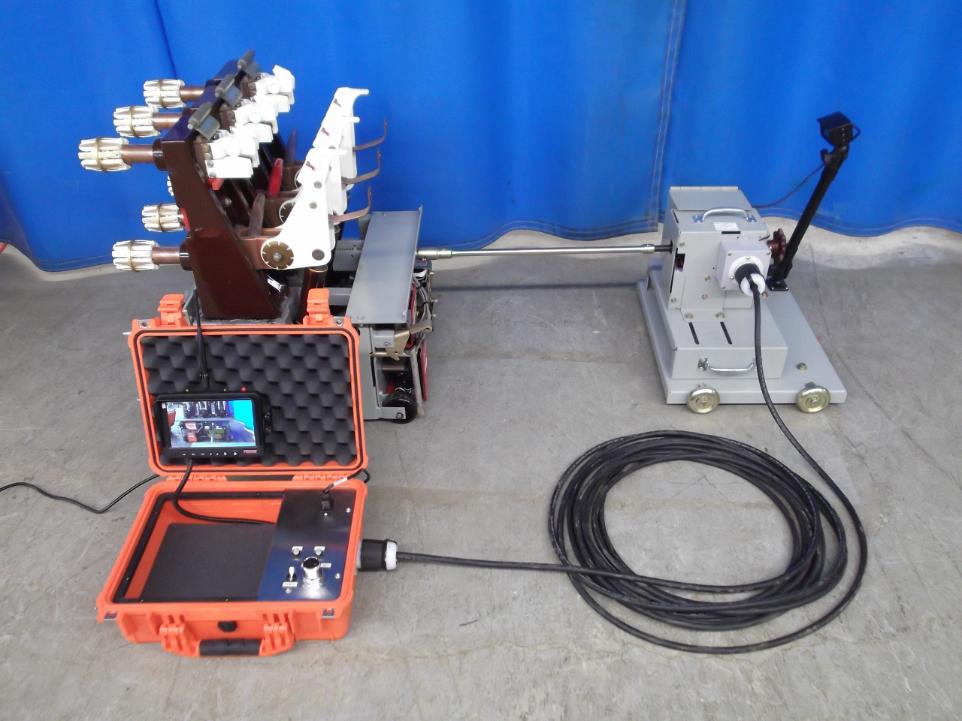

      • OR a portable monitor and control station in an orange industrial case - shown below



    Breaker Tilt Monitoring

    • A dual axis analog monitor continuously transmits the level/tilt status of the breaker for live viewing and to automatically stop movement when outside programmed limits.



    Breaker Lift Resistance

    • The resistance of the breaker lifting mechanism is continuously monitored.  Resistance exceeding typical limits provides an alarm or trip.



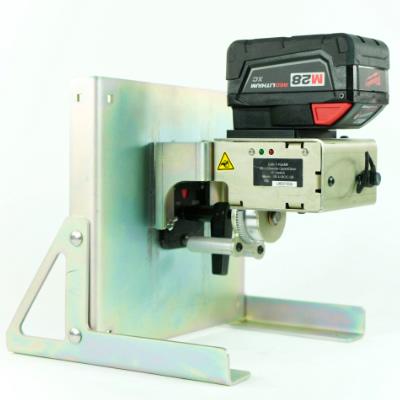

    Lifting Motor and Controls

    • A new racking motor/clutch assembly is provided to control the motor, clutch and breaker lifting mechanism from the remote operator station.
    • The new racking motor/clutch assembly is equipped with a variety of sensors for monitoring during operation.

    Remote Racking System Demonstration
